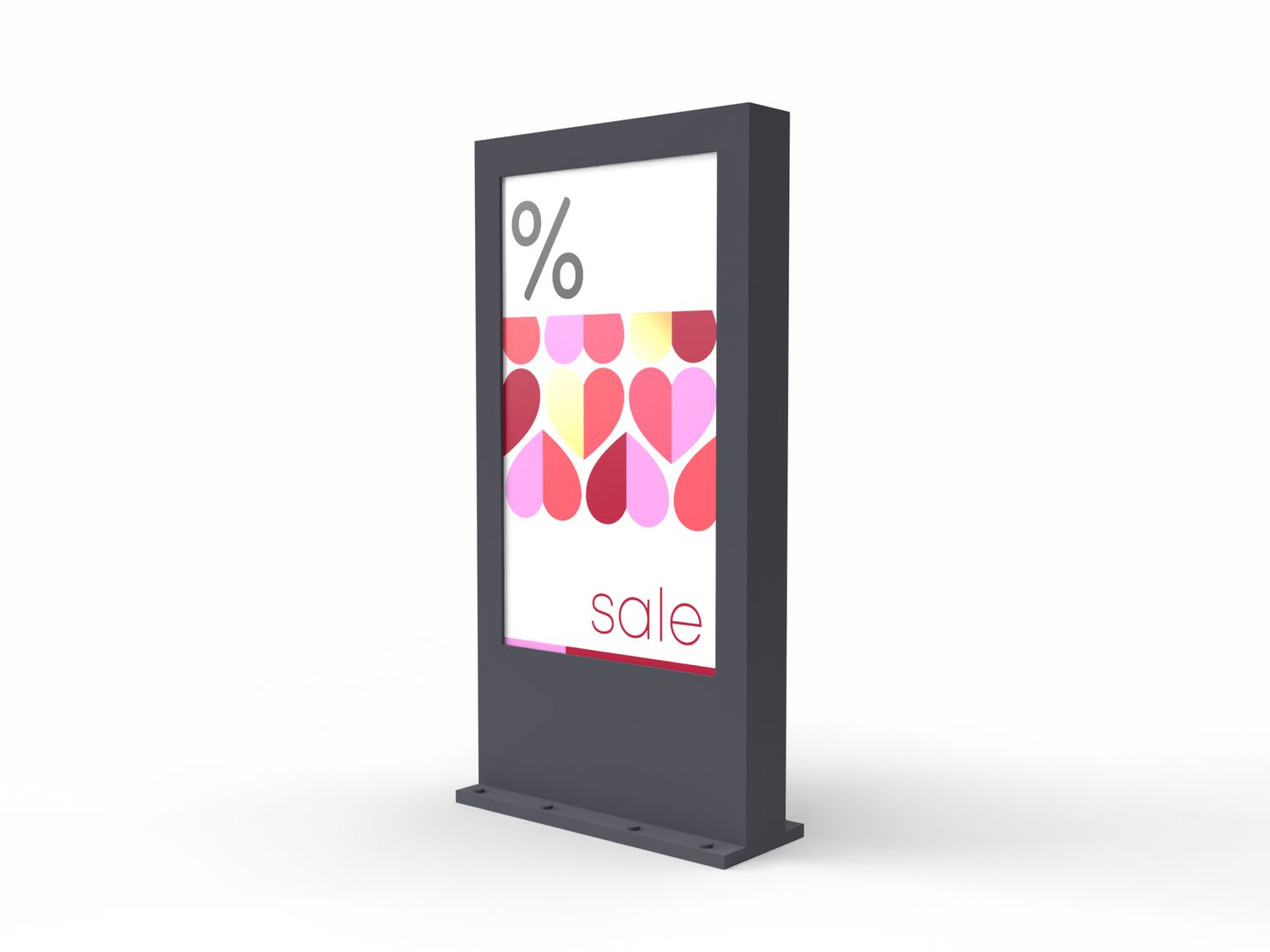

Name: Digital signage outdoor column, monitor, 86”
Brand: Display BOE/LG
SKU: 10105 WP
Price: 12575.0 EUR
Availability: InStock

Product Details

EAN: 0645117502971

Brand: Display BOE/LG

Producer: W.P. Highlights GmbH & Co. KG

case: Steel/aluminum/glass

Front: ESG glass 6mm

Size W x H x D: approx.ca. 1340 x 2650 x 500 mm

Housing color: Dark grey, RAL 7016

Protection class: Outdoor, IP 65

monitor: 86"

brightness: bis 3000 cd/m²

resolution: 4K (3840 x 2160)

contrast: 4000 : 1

Display colors: 16,7 Mill.

Colorsystem: PAL/NTSC/SECAM

Viewing angle: H178°/ V178°

operating system on board: Android 11 OS, 8GB RAM+64G ROM

signal: Ethernet LAN + WLAN

connections: USB/HDMI

Power: AC 100-230 V/ 50/60 Hz /260-480 Watt

operating hours: 50.000

Working temperature: -30°C ~ 50°C

audio: 2x 5 Watt

certificate:: CE, CCC, FCC, ROHS

Energy efficiency class: G

Shipping: plus shipping costs

guarantee: 12 Months

delivery time: ca. 8-12 weeks

Technical Description | Features

Enclosure:

Our digital signage totems are specifically designed for outdoor environments with challenging conditions. They meet IP65 standards for protection against dust and water. The enclosure is made from either galvanized steel or aluminum, finished in anthracite powder coating by default. Upon request, custom RAL color options and logo printing are available for branding purposes. The units are built for 24/7 continuous operation, even in extreme temperature ranges.

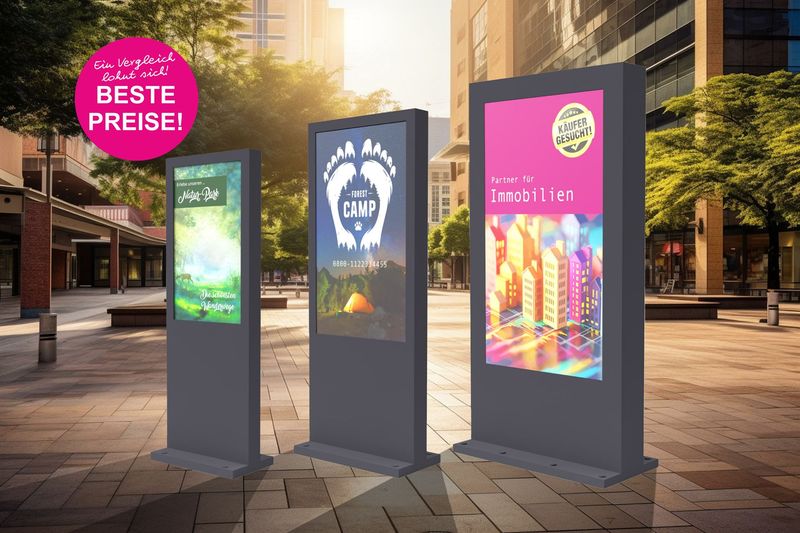

Outdoor steles with a button “It's worth comparing! Best prices!”

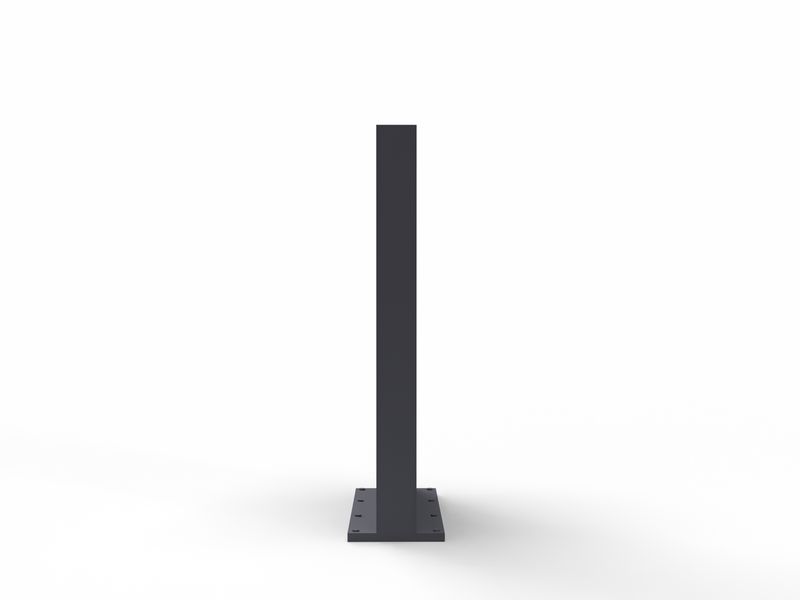

Dimensions of outdoor stele

Mounting:

Each system includes a solid base plate and mounting kit for installation on a foundation. A flush-mount option is also available, ensuring the base plate is concealed from view.

Display/Monitor:

We use professional BOE and LG displays designed for digital signage. These high-brightness monitors deliver exceptional image clarity and contrast in bright sunlight and other challenging lighting conditions. They support 24/7 operation and have programmable on/off schedules. Android OS and free digital signage software are standard. Dual-sided displays, touchscreens, remote monitoring, and 4G LTE modules are optional.

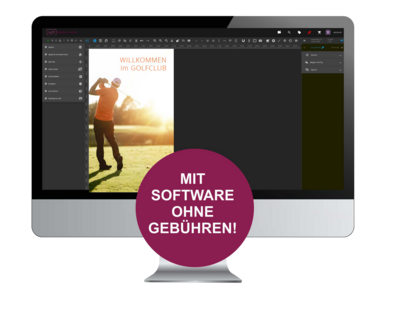

Illustration of free digital signage software

Digital Signage Software

Free Digital Signage Software:

Our software allows you to manage and monitor displays at multiple locations with ease. Key features include screen splitting, custom playlists, and playback scheduling. Video tutorials and optional online training sessions are available to support user learning.

The following content can be displayed:

• Texts and tickers
• Time and date
• Images - jpeg, png
• Movies - Mpeg, H264
• RSS feed

Display networking with digital signage

Optional:
Full version with Linked Data component. More information can be found here: Digital Signage Software

Packaging/Delivery:
Special shipping in a wooden crate, pre-assembled or partially assembled. Please inquire about shipping and packaging costs.

Optional - Technical Features:
• Double-sided display for 43", 49", 55", and 65"
• Touch display system - 10-point touch, G+G for 43", 55", 65", and G+F for 75" and 86"
• ESG glass 6mm
• PC operating system with Intel Core i5
• Monitor management - monitoring system, remote monitoring
• Mobile Wi-Fi - 4G LTE wireless module for SIM card
• NFC tag
• Base pedestal - for underground foundation (paving)
• Housing painted according to RAL
• Housing in stainless steel 304 (for use in locations with salty air)
• 4-color logo inscription

Warranty:
12 months

Operating system on board: Android 11 OS, 8GB RAM + 64GB ROM

Delivery time: ca. 8-12 weeks

Packaging/Shipping: Special shipping in a crate. Please inquire for shipping costs.

Product Information (in German): Download datasheet

All questions and answers on the topic of digital signage can be found here: Digital Signage
Understanding Technical Explanations & Technical Terms | Whitepaper Highlights & Tips

Modification requests and custom solutions:
We also implement individual requests and ideas. Write to us or talk to us. You will receive a great idea and a non-binding offer.

Photo Note:
Photos are only an example of the product. The product will be created similarly. Variations in size, design, and color are technically possible.
