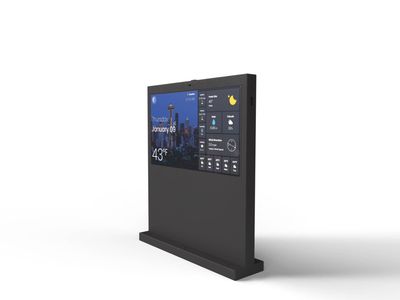

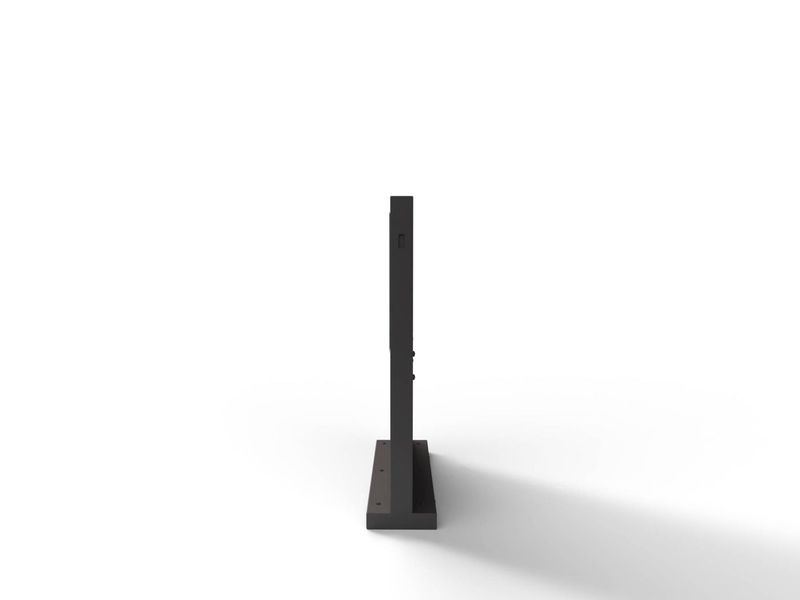

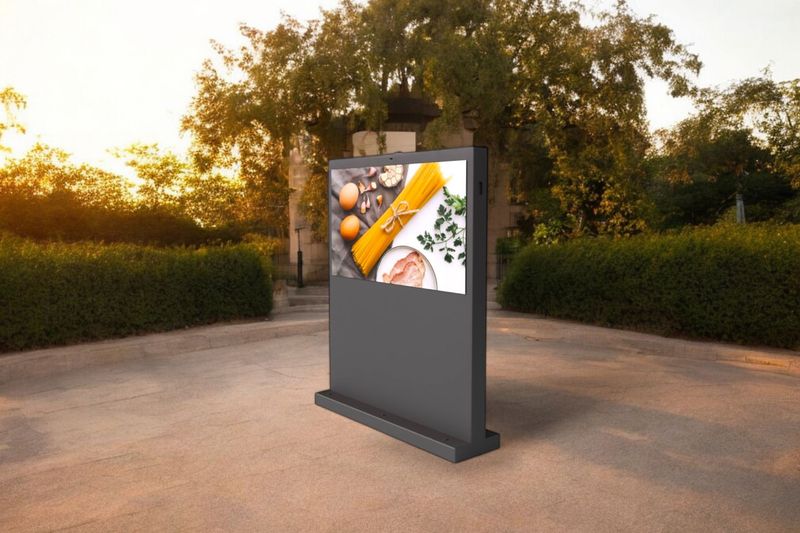

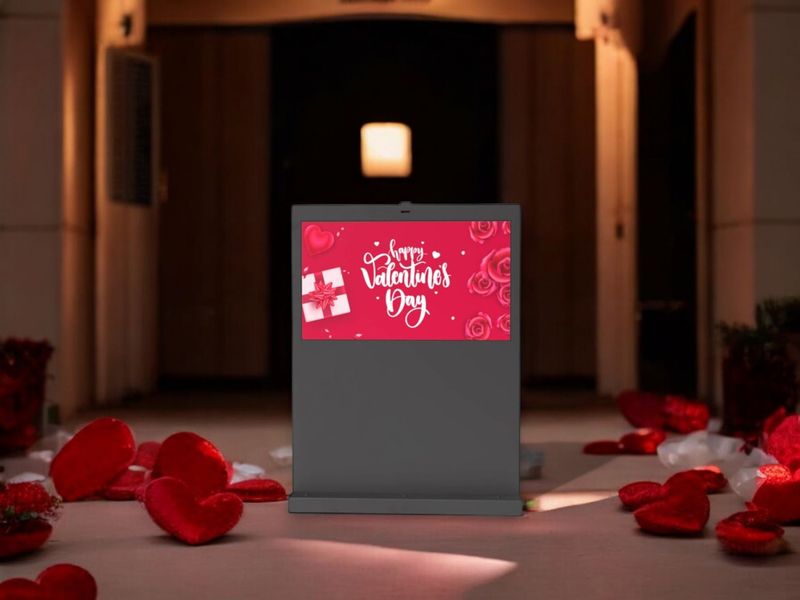

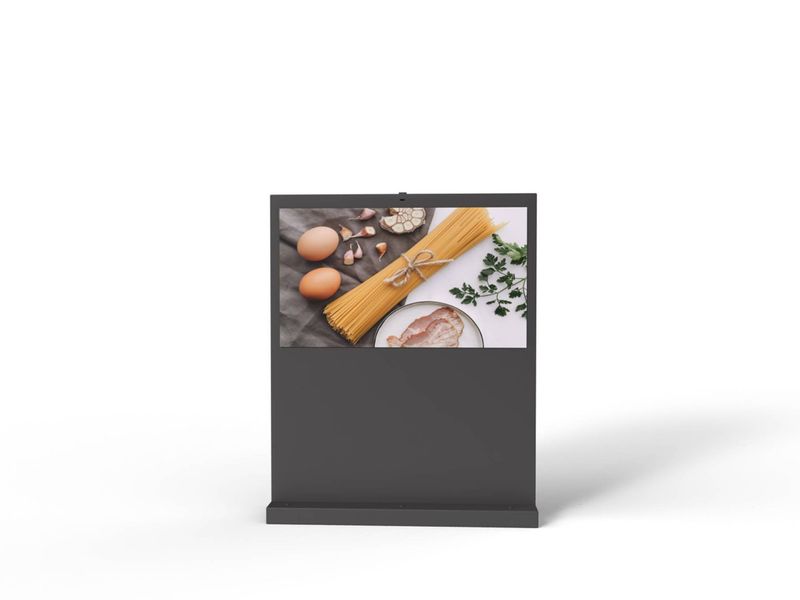

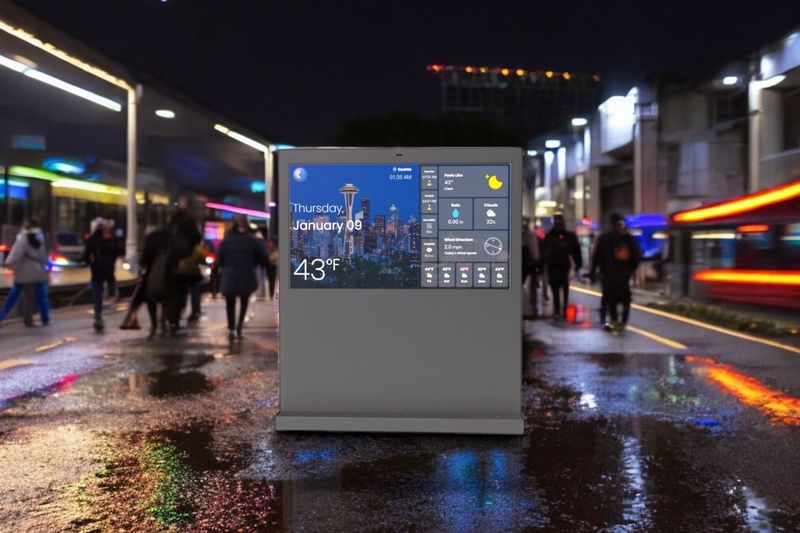

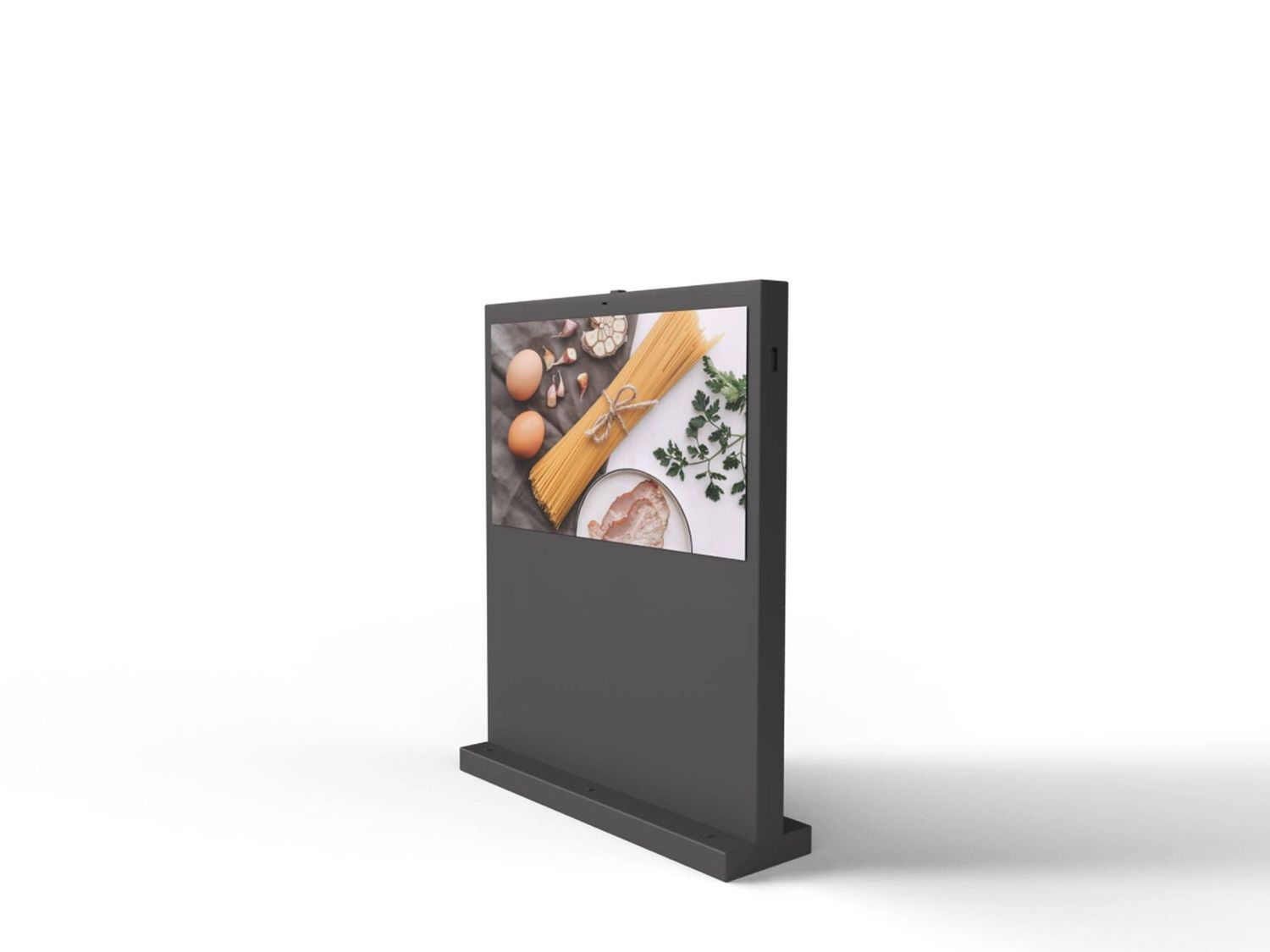

Name: Digital Signage Outdoor Kiosk, Landscape Monitor, 65"
Brand: Display BOE/LG
SKU: 10122-DSOSL65
Price: 7125.0 EUR
Availability: InStock

Product Details

EAN: 0645117503435

Brand: Display BOE/LG

Producer: W.P. Highlights GmbH & Co. KG

case: Steel/aluminum/glass

Front: ESG glass 6mm

Size W x H x D: approx. ca. 1569 x 1923 x 400 mm

Housing color: Dark grey, RAL 7016

Protection class: Outdoor, IP 65

monitor: 65"

brightness: bis 3500 cd/m²

resolution: 4K (3840 x 2160)

contrast: 4000 : 1

Display colors: 16,7 Mill.

Colorsystem: PAL/NTSC/SECAM

Viewing angle: H178°/ V178°

operating system on board: Android 11 OS, 8GB RAM+64G ROM

signal: Ethernet LAN + WLAN

connections: USB/HDMI

Power: AC 100-230 V/ 50/60 Hz /260-480 Watt

operating hours: 50.000

Working temperature: -30°C ~ 50°C

audio: 2x 5 Watt

certificate:: CE, CCC, FCC, ROHS

Energy efficiency class: G

Shipping: plus shipping costs

guarantee: 12 Months

delivery time: ca. 8-12 weeks

Technical Description | Features

Enclosure:

Our durable digital totems are designed for use in extreme outdoor environments (IP65), whether in freezing cold or scorching heat. They support continuous 24/7 operation. The housing is made of galvanized steel or aluminum, finished in anthracite powder coating by default. Custom RAL colors and optional logo branding are available.

Mounting:

A base plate and mounting set for installation on a concrete foundation are included. An alternative flush-mount option without a visible base plate is also offered.

Display/Monitor:

We use professional BOE or LG signage displays with high brightness and excellent contrast, ensuring clear images even in bright surroundings. These monitors are designed for 24/7 use, with programmable on/off times. Standard delivery includes Android OS and free digital signage software. Options include dual-sided displays, touchscreens, remote monitoring, and 4G LTE modules for SIM card use.

Digital Signage Software

Free Digital Signage Software:

Easily create and manage your content, control monitors remotely, and benefit from features like customizable playlists, screen layouts, and playback scheduling. Training is available via video tutorials or as an optional online course.

The following content can be displayed:

• Texts and tickers
• Date & Time
• Images (JPEG, PNG)
• Videos (MPEG, H264)
• RSS feed

Optional:
Full version with Linked Data component. More information can be found here: Digital Signage Software

Optional - Technical Features:

• Double-sided display for 43", 49", 55", and 65"
• Touch display system - 10-point touch, G+G for 43", 55", 65", and G+F for 75" and 86"
• ESG glass 6mm
• PC operating system with Intel Core i5
• Monitor management - monitoring system, remote monitoring
• Mobile Wi-Fi - 4G LTE wireless module for SIM card
• NFC tag
• Base pedestal - for underground foundation (paving)
• Housing painted according to RAL
• Housing in stainless steel 304 (for use in locations with salty air)
• 4-color logo inscription

Warranty:
12 months

Operating system on board: Android 11 OS, 8GB RAM + 64GB ROM

Delivery time: ca. 8-12 weeks

Packaging/Shipping: Special shipping in a crate. Please inquire for shipping costs.

All questions and answers on the topic of digital signage can be found here: Digital Signage
Understanding Technical Explanations & Technical Terms | Whitepaper Highlights & Tips

Modification requests and custom solutions:
We also implement individual requests and ideas. Write to us or talk to us. You will receive a great idea and a non-binding offer.

Photo Note:
Photos are only an example of the product. The product will be created similarly. Variations in size, design, and color are technically possible.
