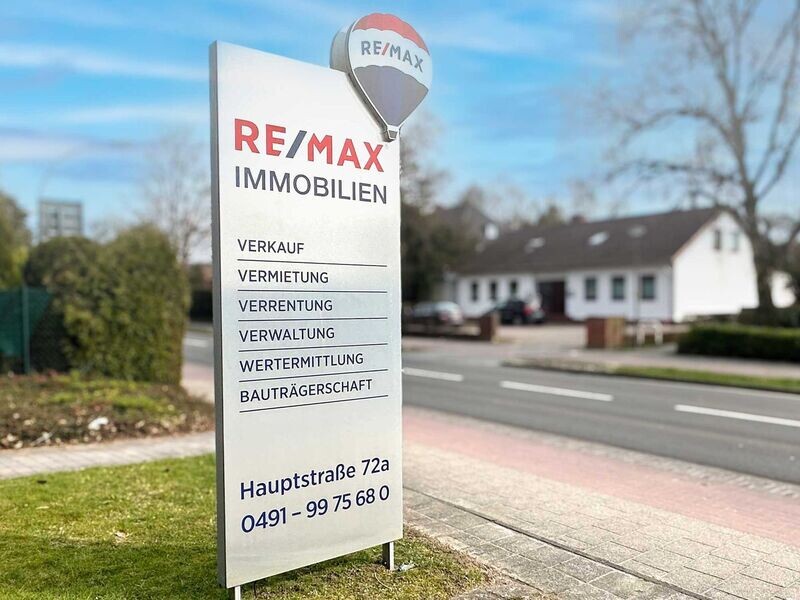

Advertising Pylon, Symtra Design, Special Design, Stainless Steel Look, LED Illuminated, H=3000 mm

Technical Description | Features:

Material:

Construction/frame profile made of galvanised steel and/or aluminium composite material. Fronts made of weather-resistant aluminium composite material. Motifs milled and backlit with 3 mm thick opal (white) acrylic glass and LED modules. Frame colour same as fronts, brushed decorative stainless steel.

Décor:

Brushed stainless steel, thickness: 3 mm.

Applied signet:

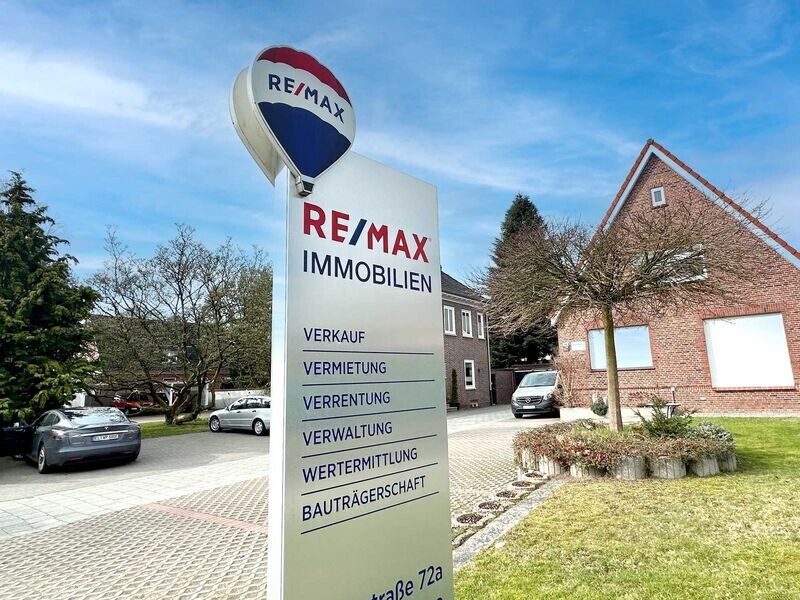

Hot-air balloon motif with front lighting. Size of hot-air balloon: 530 x 690 x 60 mm, front consists of opal acrylic glass, frame consists of aluminium composite material and is not illuminated. Illumination 6500 K/cold white. The balloon is screwed onto the pylon. Other motifs possible, please enquire.

Processing:

Construction and frame welded, fronts edged as bonnet and installed in view without screwing (side screwing).

Lettering:

Illuminated elements are foiled with translucent film. The underscores are not illuminated.

Illumination:

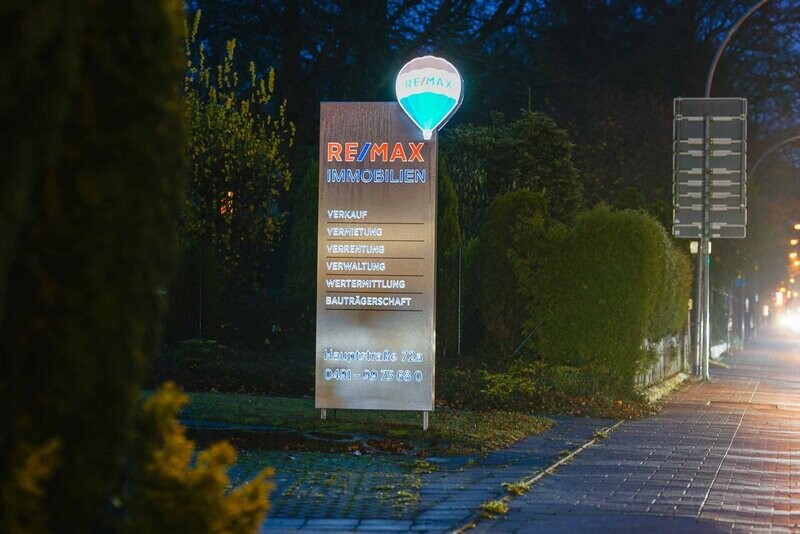

It takes place by means of modern and energy-saving LED technology (6500 Kelvin , approx. 35-120 Watt) Lettering elements such as logo and texts are backed with acrylic glass and illuminated through.

Mounting:

It is done with two flange plates for existing foundation. Height of the galvanised flange feet 200 mm. Thus the pylon is 3200 mm in height.

Packaging/delivery:

Pre-assembled or partially assembled, packed on pallet. Please ask for shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.
