Advertising Pylon, Symtra Design, LED Illuminated, H=2250 mm

Technical Description | Features:

Material:

Construction made of galvanised steel and/or aluminium. Frame colour silver anodized. Fronts made of aluminium composite material, colour white matt. Painted according to RAL on request for an additional charge.

Processing:

Construction and frame welded, fronts canted as hood and installed without screwing in sight. Plinth production: approx. 250 mm in height, consisting of 4 mm aluminium dibond white matt. Strip foiling in silver or according to choice. Pedestal is slightly narrower than the pylon.

Lettering:

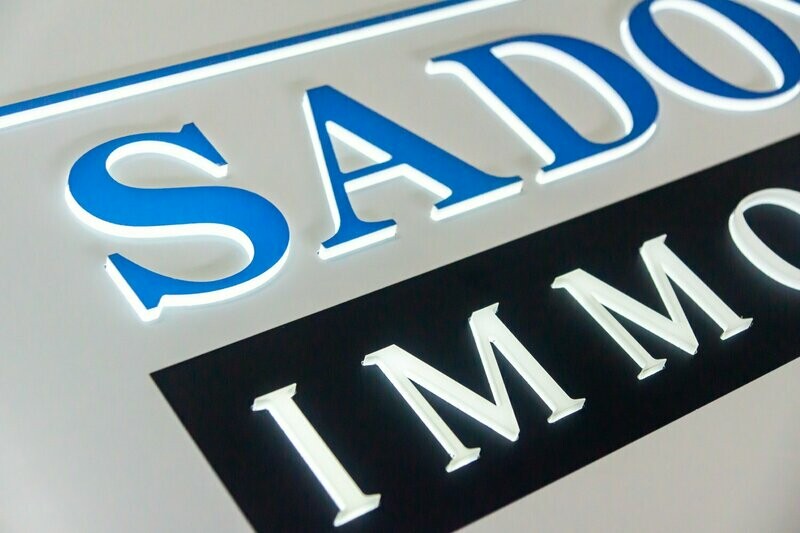

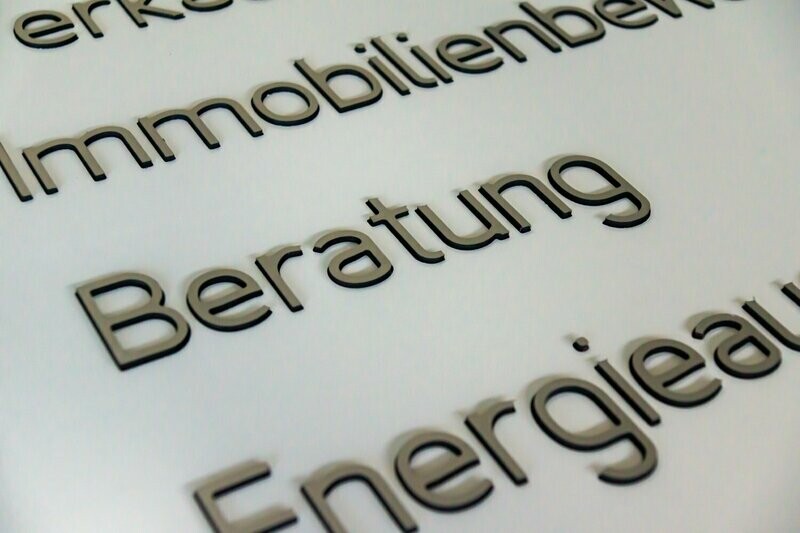

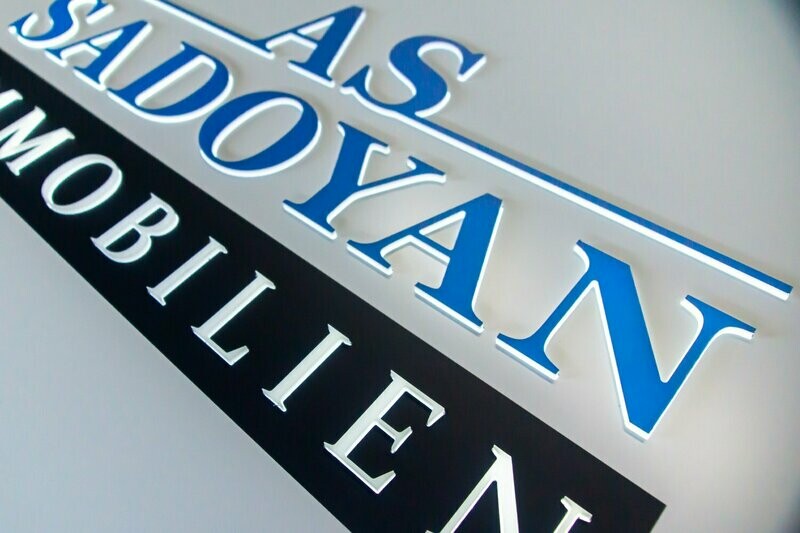

With LED light motif (logo) in the upper area. Decoupled (pierced) consisting of 10 mm acrylic glass (opal) - approx. 4-5 mm out of the front. Fronts matted with transparent foil in digital printing. Listings as well as domain address milled out of 3 mm aluminium composite material in silver. Remaining texts from foil text. Colours according to choice.

Lighting:

It takes place by means of modern and energy-saving LED technology (6500 Kelvin, approx. 35-120 Watt) Lettering elements such as logo and texts are backed with acrylic glass and illuminated through.

LED Spot Light

With 2x recessed floor lights stainless steel silver, 0.5 m connection cable, recessed housing, incl. LED power supply unit and connection box, 220-240 V/AC alternating voltage, 50/60 Hz, 6 watts, 6000 K/cold white, luminous flux 590 lm,LED - module 35/45 degrees asymmetrical, IP67, fixed.

Mounting:

Ground mounting takes place via two anchor tubes on the pylon, cast in a quiver foundation. On request, also available with two flange plates for an existing foundation at extra cost (recommended mounting kit included).

Packaging/Delivery:

Pre-assembled or partially assembled packed on pallet. Please ask for shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

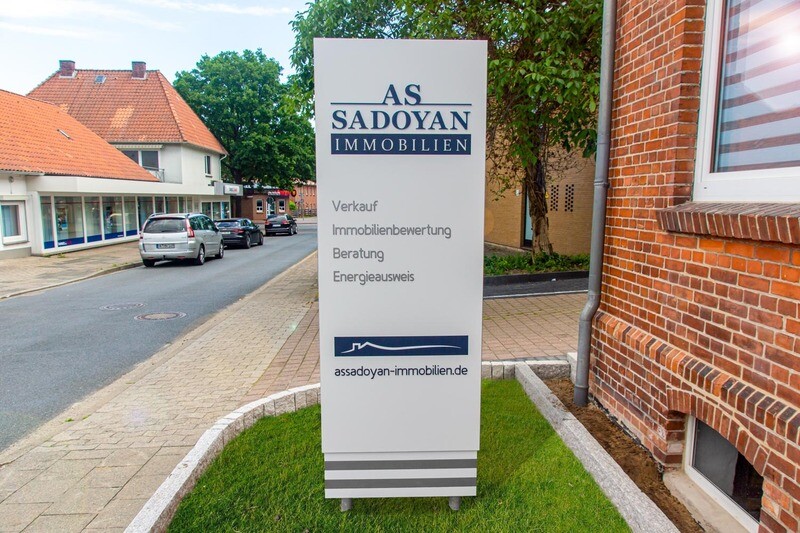

Photo reference:

Photos represent only an example of the product. The product is created similar. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
