Advertising Pylon, Symtra Design, LED Illuminated, H=2200 mm

Technical Description | Features:

Material:

Construction made of galvanised steel and/or aluminium. Colour: silver, fronts made of aluminium composite material, colour: white. Painted to RAL on request at extra charge. Lettering according to choice.

Processing:

Construction and frame welded, fronts edged as bonnet and installed in view without screwing.

Lettering:

Up to 4 colours in digital print according to your artwork or with foil text.

Lighting:

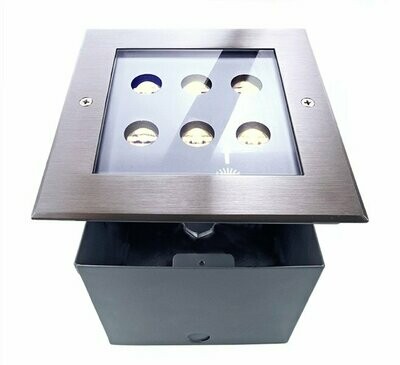

With 2x LED recessed floor lights stainless steel silver, 0.5 m connection cable, recessed housing, incl. LED power supply unit and connection box, 220-240 V/AC alternating voltage, 50/60 Hz, 6 watts, 3000K/warm white, luminous flux 400 lm, LED - module 35/45 degrees asymmetrical, IP67, fixed.

Mounting:

Ground mounting is via two anchor tubes on the pylon, cast in a quiver foundation. On request also available with two flange plates for an existing foundation at extra cost (recommended mounting set included in delivery).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
