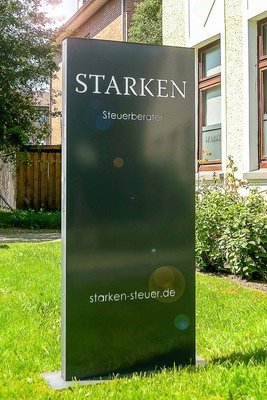

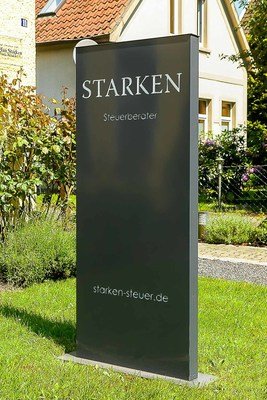

Advertising Pylon, Symtra Design, LED Illuminated, H=1800 mm

Technical Description | Features:

Material:

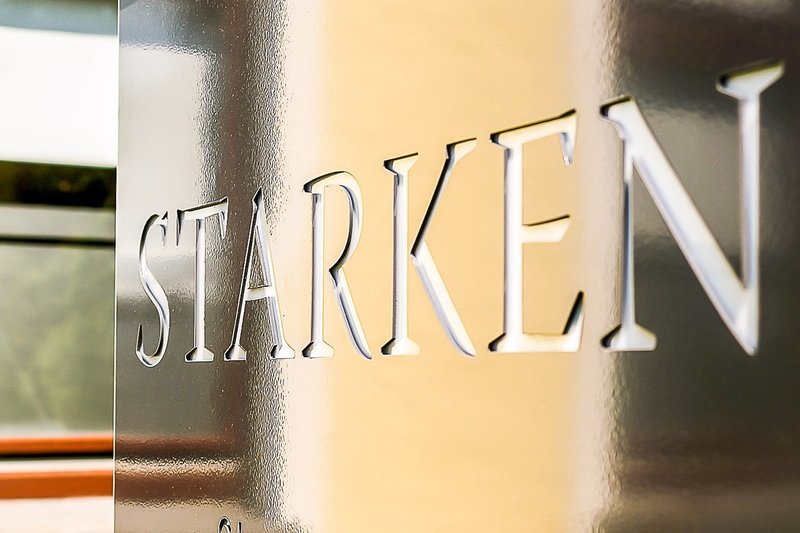

Construction made of galvanised steel and/or aluminium. Fronts made of aluminium composite material. Frame and fronts painted in RAL 7016 silk matt or according to your choice. Upper and lower areas lasered according to your design, backed with acrylic glass and backlit with LED modules. Foiling with translucent foil according to your specifications.

Processing:

Construction and frame welded, fronts edged as bonnet and screwed to the sides.

Lighting:

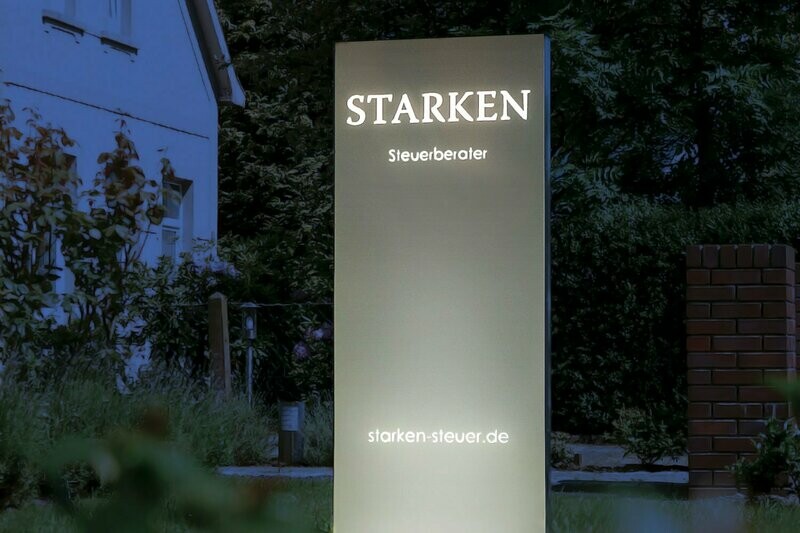

Modern, energy-saving LED technology (6500 Kelvin, approx. 35-120 watts). Lettering elements such as logos and texts are backed with acrylic glass and illuminated through.

Mounting

Ground mounting takes place via two anchor tubes on the pylon, which are cast in a sleeve foundation. On request, also available at extra cost with two flange plates for an existing foundation (recommended mounting set included).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
