Advertising Pylon, Symtra Design, H=2600 mm

Technical Description | Features:

Material:

Construction made of galvanised steel and aluminium. Colour: silver, fronts made of acrylic glass, colour: white opal. Backlit with LED modules. Painted to RAL on request at extra charge. Lettering according to choice.

Processing:

Construction and frame welded, fronts edged as bonnet and installed in view without screw connection (side screw connection).

Lettering:

Up to 4 colours in digital print according to your artwork or with foil text.

Lighting:

Is carried out by means of modern and energy-saving LED technology (6500 Kelvin, approx. 35-120 watts) Lettering elements such as logo and texts are backed with acrylic glass and illuminated through.

Mounting:

Ground mounting is via two anchor tubes on the pylon, which are cast in a sleeve foundation. On request, also available at extra cost with two flange plates for an existing foundation (recommended mounting set included in delivery).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

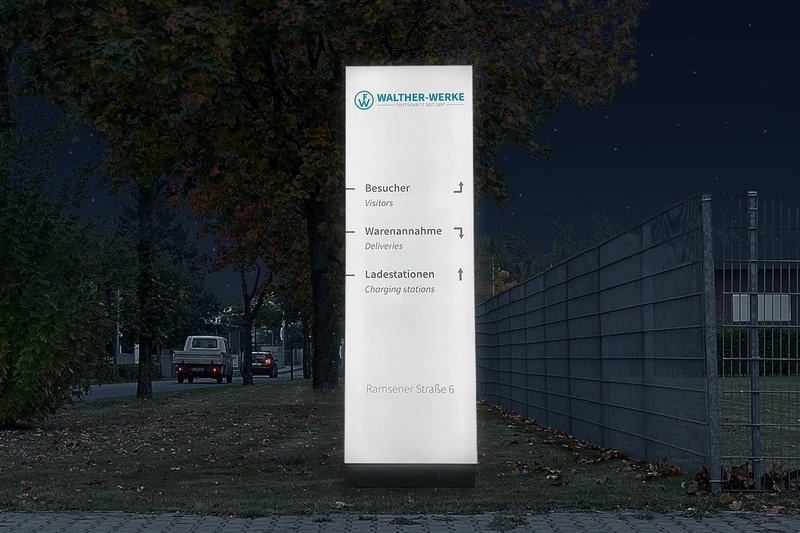

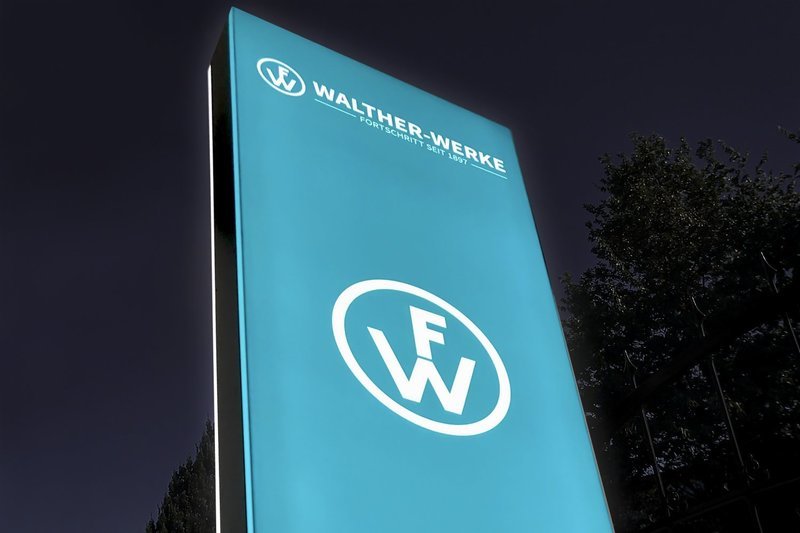

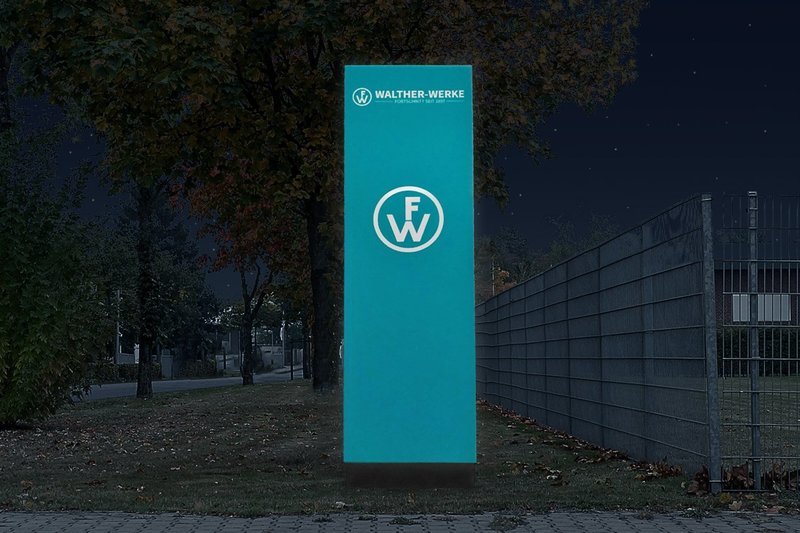

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
