Advertising Pylon, Symtra Design, H=2000 mm

Technical Description | Features:

Material:

Construction in galvanised steel and/or aluminium. Frame and fronts painted in silver according to RAL 9006 or according to your desired colour.

Front and rear:

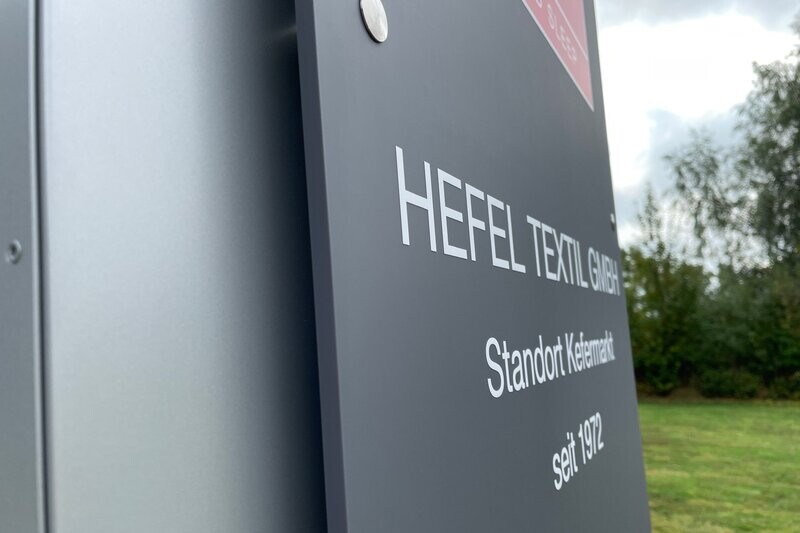

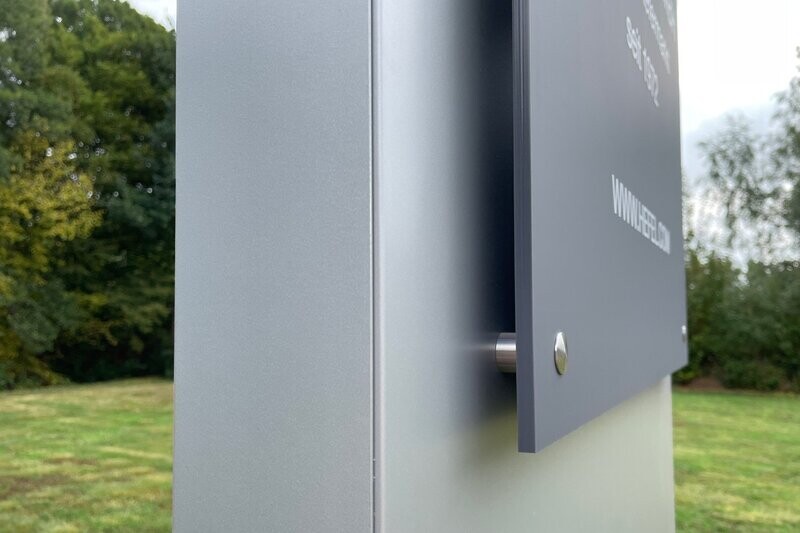

Attached spacer-mounted acrylic glass panel painted to RAL 7015 or to your desired colour (thickness 8 mm), panel size approx. 650 x 1000 mm. The acrylic glass panel is fixed with stainless steel spacers (6 pieces).

Processing:

Construction and frame welded, fronts edged as bonnet and screwed to the sides.

Lighting:

Optional with floor lights (not included in the purchase price). See lighting

Lettering:

Up to 4 colours in digital print or with foil text.

Mounting:

Ground mounting is via two anchor tubes on the pylon, which are cast in a quiver foundation. On request, also available at extra cost with two flange plates for an existing foundation (recommended mounting set included in delivery).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
