Advertising Pylon, Special Design, LED Illuminated, H=4200 mm

Technical Description | Features:

Material:
Base frame made of galvanised steel square tube 120 x 120 mm with decoupled logo made of 3 mm acrylic glass - Perspex according to colour chart in the upper third and lower third (mail address), equipped with LED technology on the back. In the centre an exchangeable acrylic glass element is inserted in the size approx. 970 x 1165 mm (W x H), equipped with LED technology on the back. Frame construction painted to RAL. Fronts made of 4 mm aluminium composite material painted according to RAL.

Finishing:
Construction welded, fronts edged and screwed to the sides. Frame elements edged and screwed with a shadow gap.

Lettering:

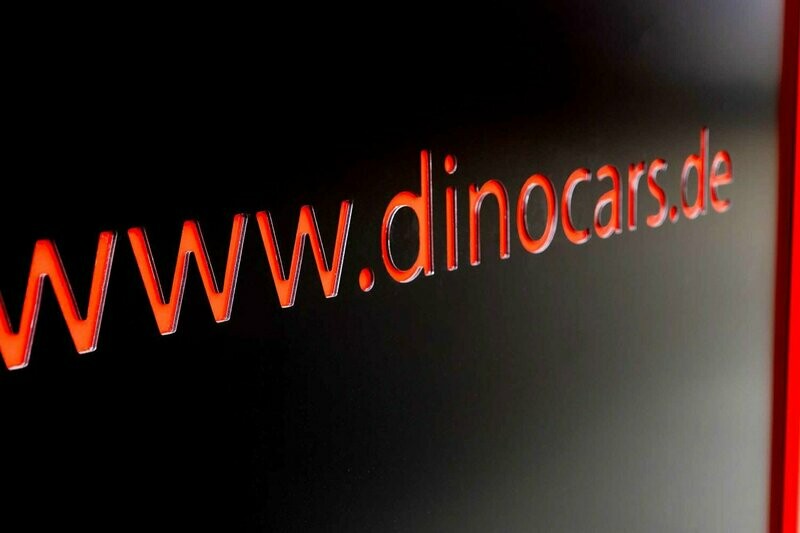

Logo milled out according to your template. Printed and foiled on the illuminated banner on high-performance film in digital print incl. protective laminate, matt, UV and weather-resistant.

Type of lighting:
Modern, energy-saving LED technology (6500 Kelvin, approx. 35-120 watts). Lettering elements such as logo and text are backed with acrylic glass and illuminated.

LED Backlight “Photo Motif”
With LED modules, incl. LED power supply unit in the sign. Connection: 220-240 V/AC alternating voltage, 50/60 Hz. 1 sqm, approx. 30 watts. 6500 K/cold white, luminous flux 505 lm, LED modules. Cable length/connection: 1.5 m.

Led-Frame-Light „Luminous contour in red“
Illuminated contour with LED modules, incl. LED power supply unit in sign. Connection: 220-240 V/AC alternating voltage, 50/60 Hz. Approx. 5 watts per metre. 6500 K/cold white, luminous flux 505 lm, LED modules. Cable length/connection: 1.5 m.

Mounting:
With two flange plates for existing foundation (recommended mounting set included).

Packaging/delivery:
Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:
For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

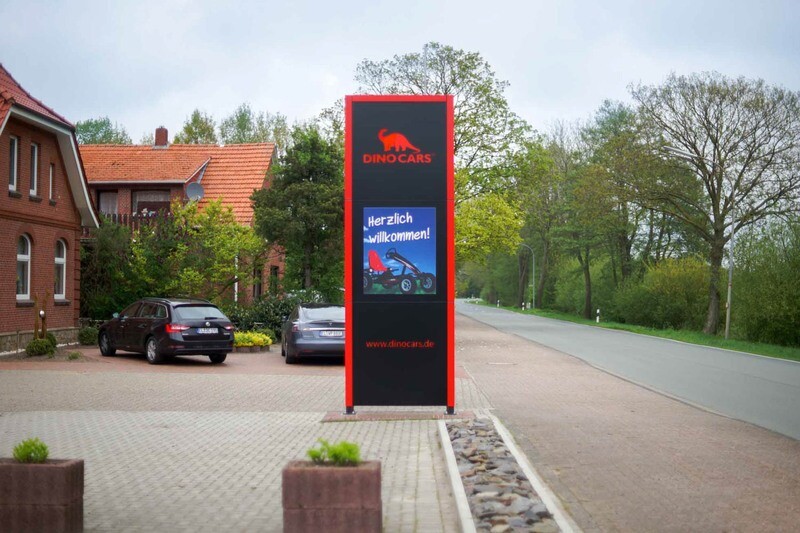

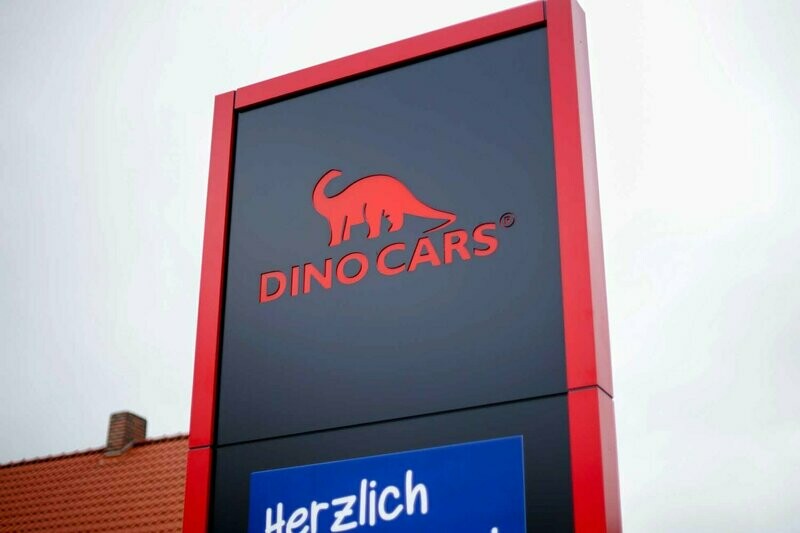

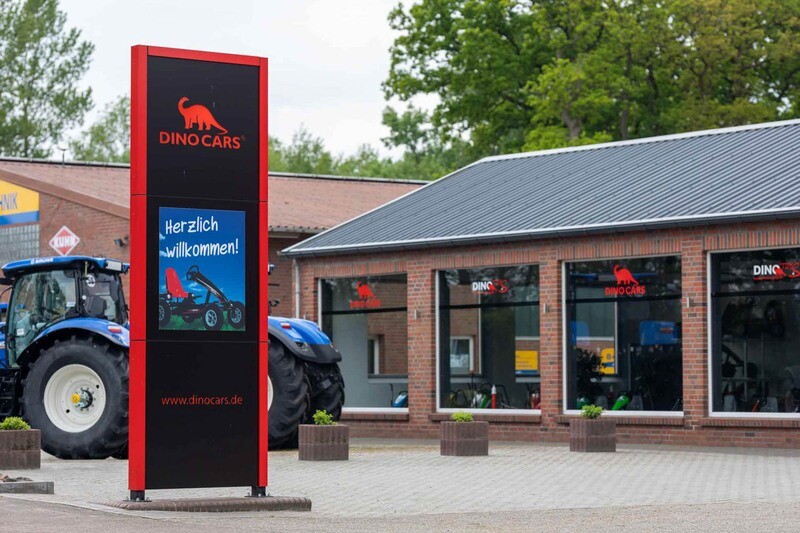

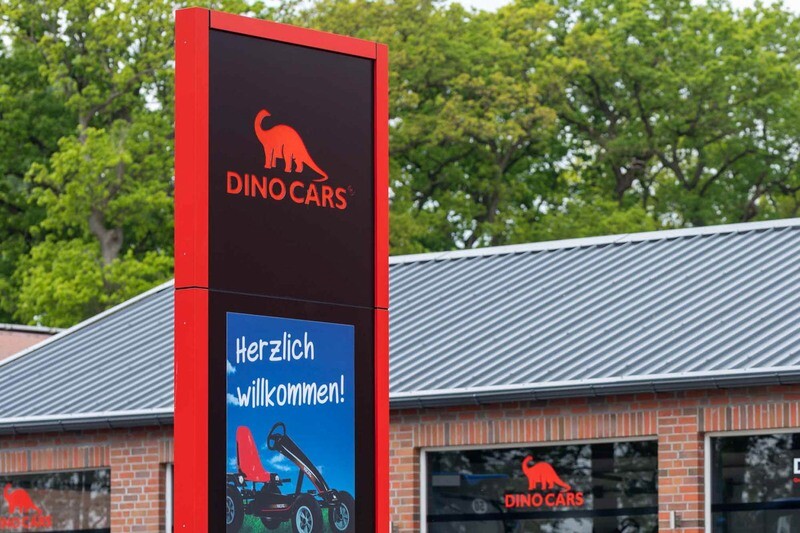

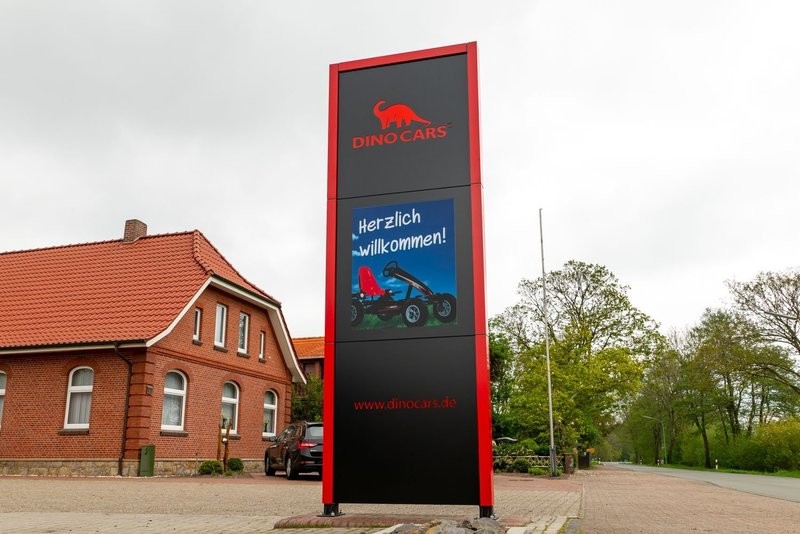

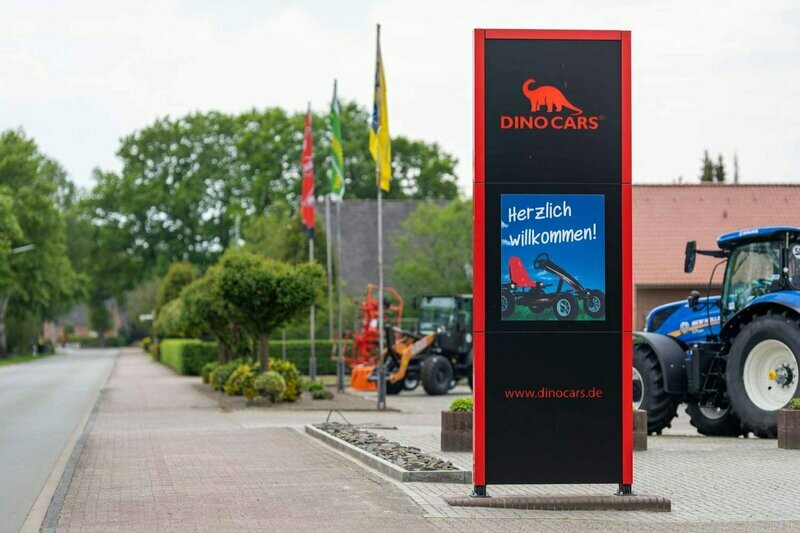

Photo reference:
Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
