Advertising Pylon, Special Design, LED Illuminated, H=4000 mm

Technical Description | Features:

Material:

Construction made of galvanised steel and/or aluminium. Fronts made of aluminium composite material in cassette form, colour: silver. Frames finished with shadow gap, colour: anthracite. Above a light box in special form, approx. 600 x 2000 mm (W x H). Backlit with LED modules. Lettering according to choice. Painting according to RAL on request at an extra charge.

Finishing:

Welded construction, fronts edged and screwed to the sides. Illuminated banner built in special shape and equipped with acrylic glass bonnets.

Lettering:

Up to 4 colours in digital print according to your artwork or with foil text.

Illumination:

Modern and energy-saving LED technology (6500 Kelvin, approx. 35-120 watts). Lettering elements such as logos and texts are backed with acrylic glass and illuminated.

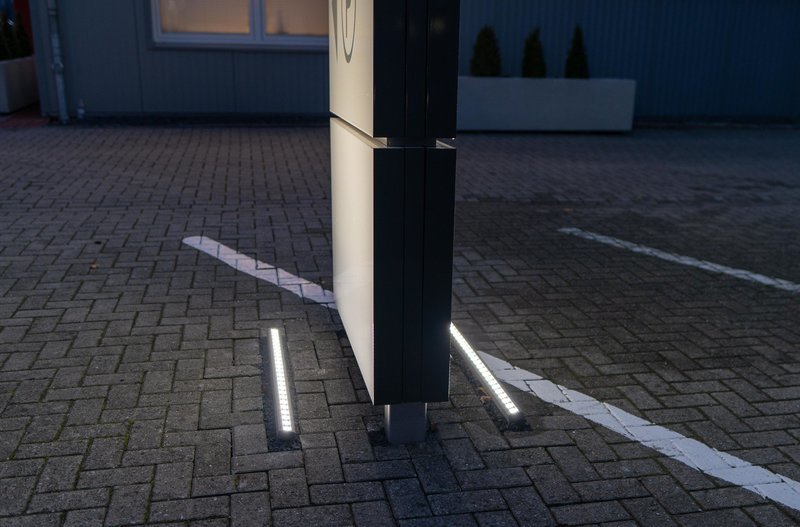

2x LED recessed floor lights stainless steel silver, 0.5 m connection cable, recessed housing, incl. LED power supply unit and connection box, 220-240 V/AC alternating voltage, 50/60 Hz, 6 watts, 6000 K/cold white, luminous flux 590 lm, LED - module 35/45 degrees asymmetrical, IP67, fixed.

Mounting:

Ground mounting is via two anchor tubes on the pylon, which are cast in a sleeve foundation. On request also available with two flange plates for an existing foundation at extra cost (recommended mounting set included in delivery).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

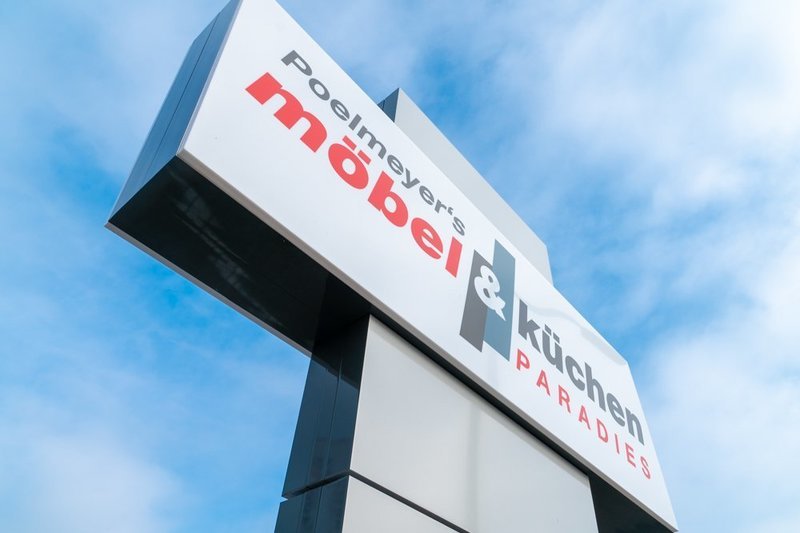

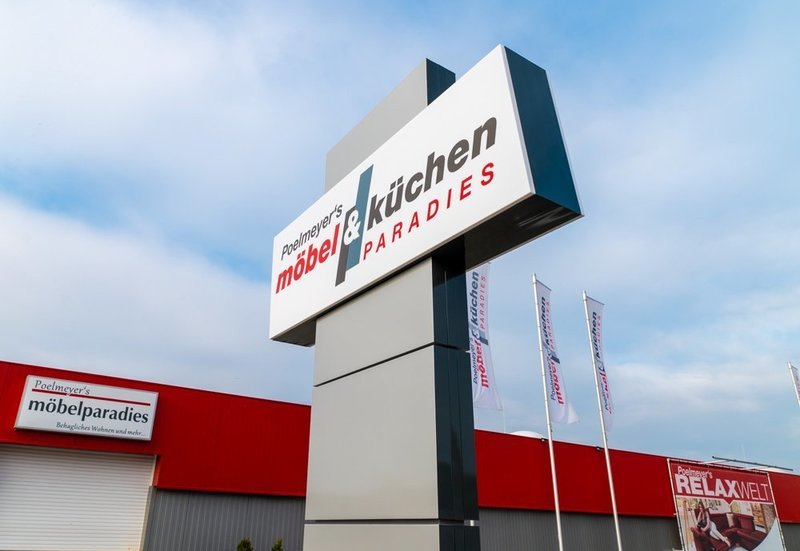

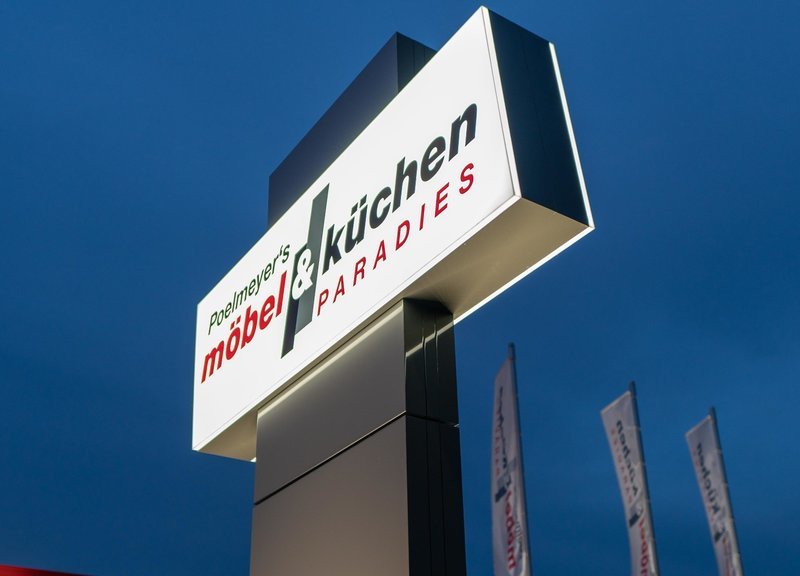

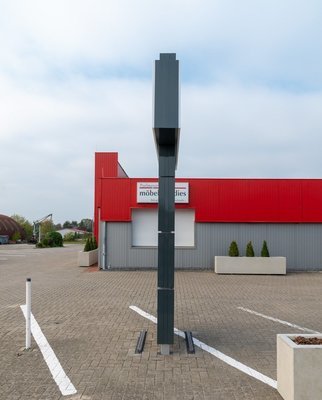

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
