Advertising Pylon, Special Design, LED Illuminated, H=2000 mm

Technical Description | Features:

Material:
Base frame - construction made of galvanised steel and aluminium composite material.

Processing:
Construction and frame welded, fronts edged as bonnet and installed in view without bolting (side bolting). Two bonnets with logo and web address mounted on pylon on one side facing the street. Logo decoupled from bonnet and foiled in colour of choice. As well as web address decoupled.

Painting:
Fronts and frames in RAL 9001 cream white. Bonnets painted in NCS S 7502Y. RAL colours freely selectable.

Lettering:
Printed on high-performance digital film incl. protective laminate, matt, UV and weather resistant. Motif according to your artwork.

Lighting:
LED spot light

With 2x recessed floor lights, stainless steel, silver, 0.5 m connection cable, recessed housing, incl. LED power supply unit and connection box, 220-240 V/AC alternating voltage, 50/60 Hz, 6 watts, 6000 K/cold white, luminous flux 590 lm, LED module 35/45 degrees asymmetrical, IP67, fixed.

Mounting:
Ground mounting is via two anchor tubes on the pylon, which are cast in a sleeve foundation. On request also available with two flange plates for an existing foundation at extra cost (recommended mounting set included in delivery).

Packaging/delivery:
Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Modification requests and special solutions:
For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

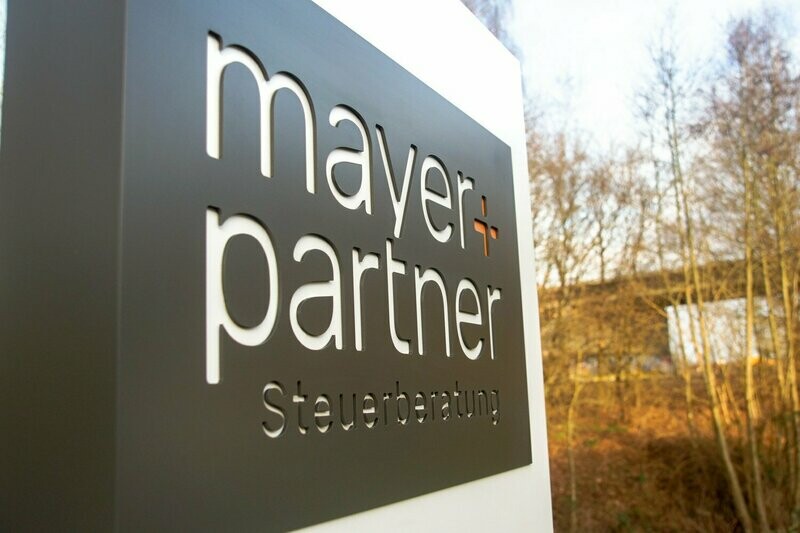

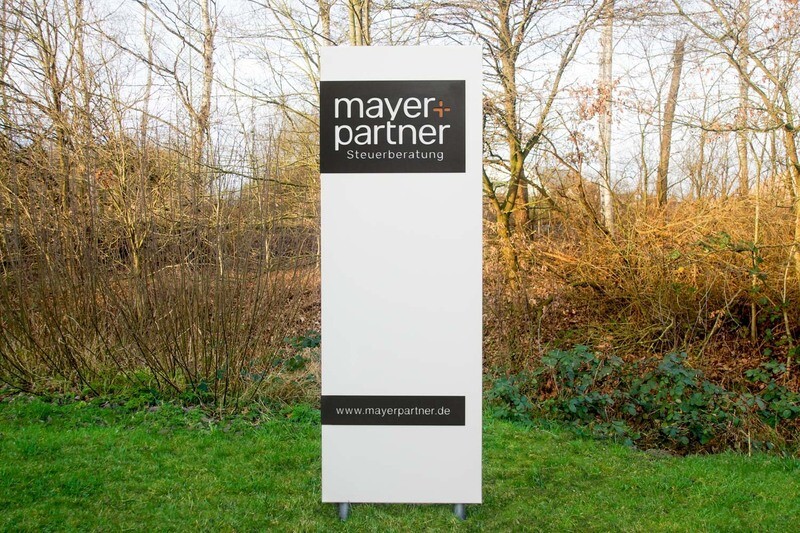

Photo reference:
Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
