Advertising Pylon, Shadow Design, LED Illuminated, White, H=1800 mm

Technical Description | Features:

Material:

Construction made of galvanised steel and/or aluminium. Fronts made of weather-resistant aluminium composite material in white. Side frame finished with a very beautiful shadow design joint. Colour: ivory. Painted according to RAL on request at an extra charge. Lettering according to choice.

Processing:

Construction welded, frame and fronts edged in aluminium composite material. Screwed joints not visible (screwed to the side).

Lettering:

Up to 4 colours in digital print according to your artwork or with foil text.

Lighting:

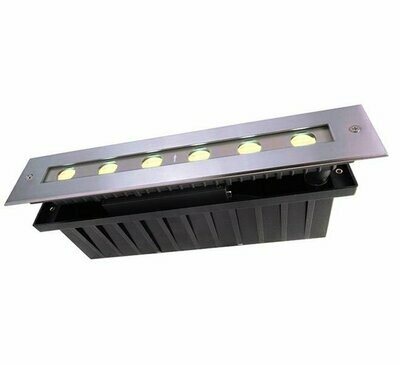

2x LED recessed floor lights stainless steel/silver, 0.5 m connection cable, recessed housing, incl. LED power supply unit and connection box, 220-240 V/AC alternating voltage, 50/60 Hz, 6 watts, 6500 K/warm white, luminous flux 590 lm, LED module 35/45 degrees asymmetrical, IP67, fixed.

Mounting:

Via two steel tubes, approx. 700 mm protruding from the pylon for quiver foundation or at extra cost with two flange plates for existing foundation (recommended mounting set included).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

Reach out with your individual requirements. We’ll provide a creative concept and a no-commitment offer.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
