Advertising Pylon, Shadow Design, LED Illuminated, H=2500 mm

Technical Description | Features:

Material:

Construction made of galvanised steel and/or aluminium. Fronts made in silver colour. Side frame finished with a very nice shadow design joint. Colour: Anthracite. Painted according to RAL on request at an extra charge. Logo text above, as well as information fields for logo and texts lasered out of the front and backed with acrylic glass. All LED light modules backlit. Lettering according to choice.

Finishing:

Welded construction, frame and fronts made of edged aluminium. Screw connections on the sides and not in sight. Text and information fields for logo and texts recessed and backlit and illuminated with LED modules.

Lettering:

Up to 4 colours in digital print according to your artwork or with foil text.

Illumination:

With LED modules, incl. LED power supply unit in the pylon. Connection: 220-240 V/AC alternating voltage, 50/60 Hz. 6500 K/cold white, LED modules. Cable length/connection: 1.5 m.

Mounting:

Via two steel tubes, approx. 700 mm protruding from the pylon for quiver foundation or, at extra cost, with two flange plates for existing foundation (recommended mounting set included).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

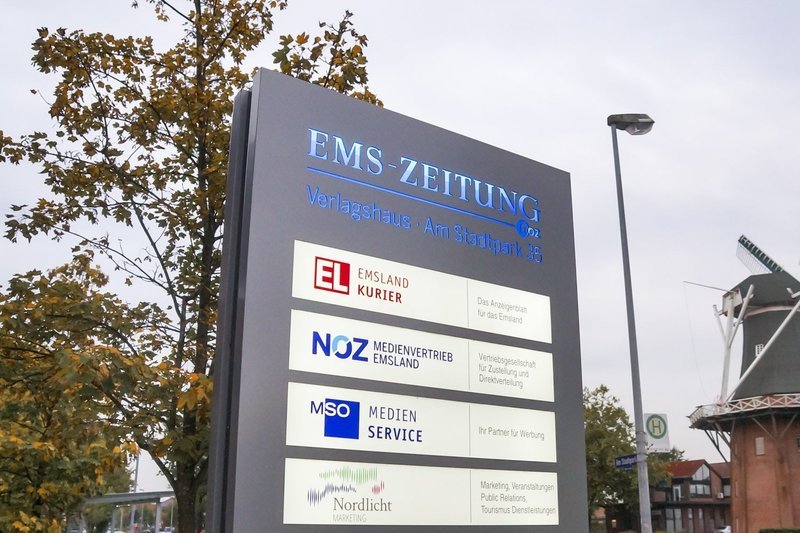

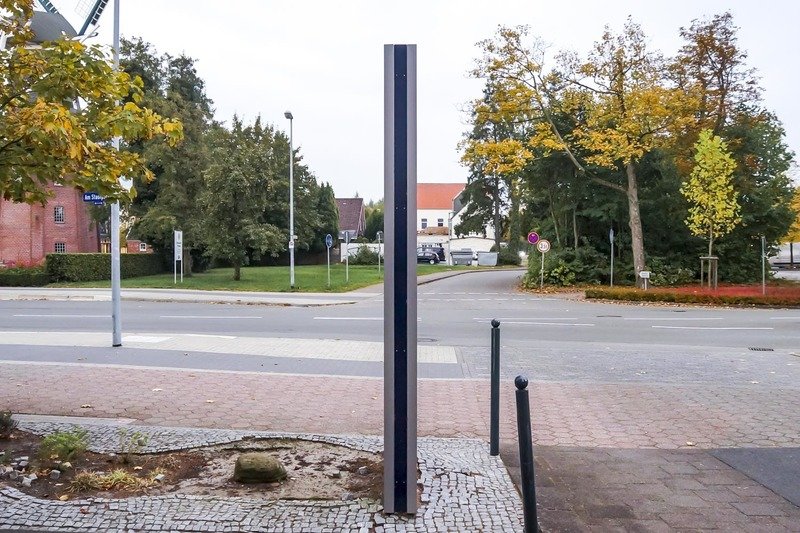

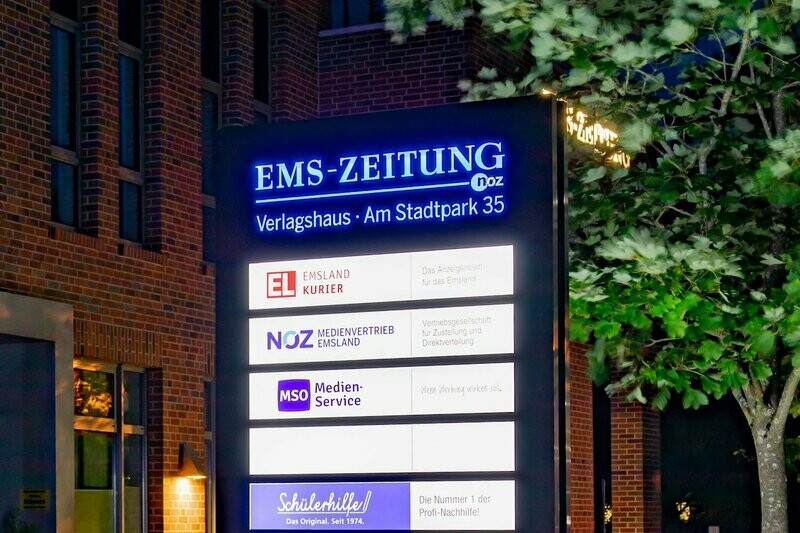

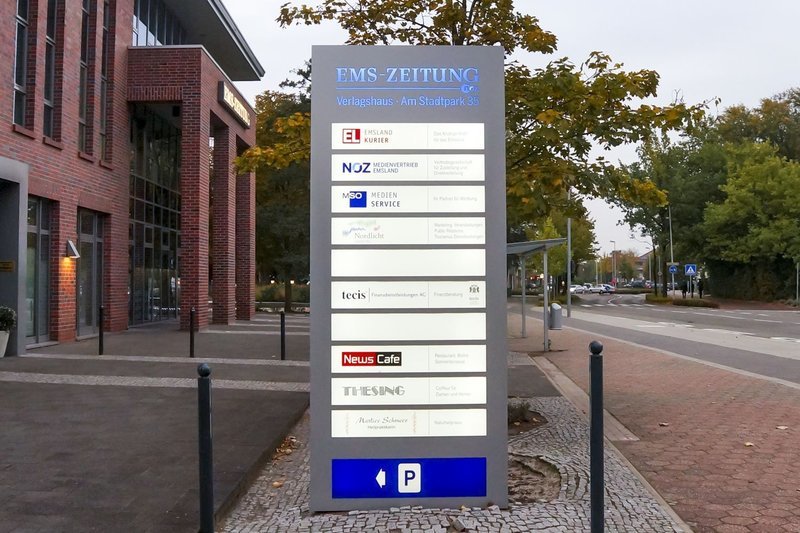

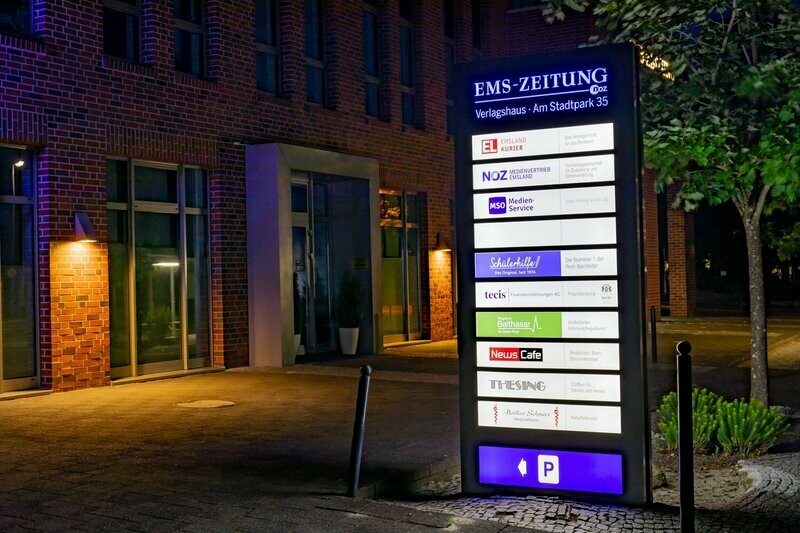

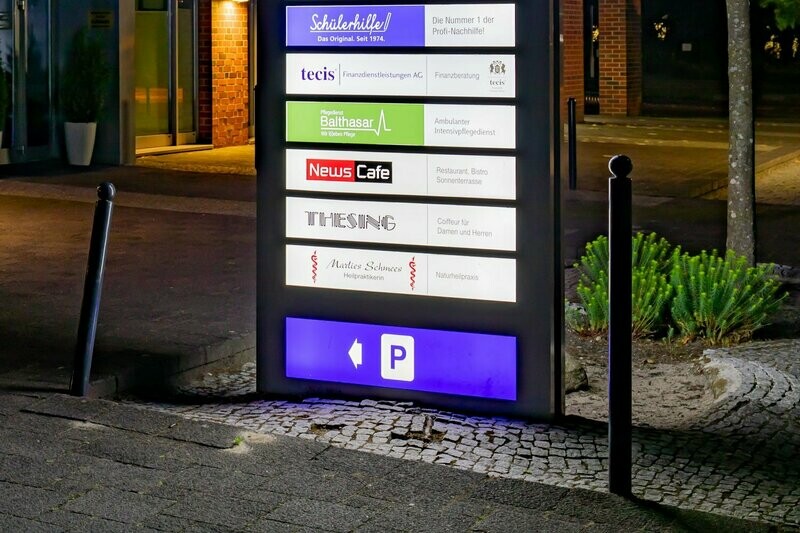

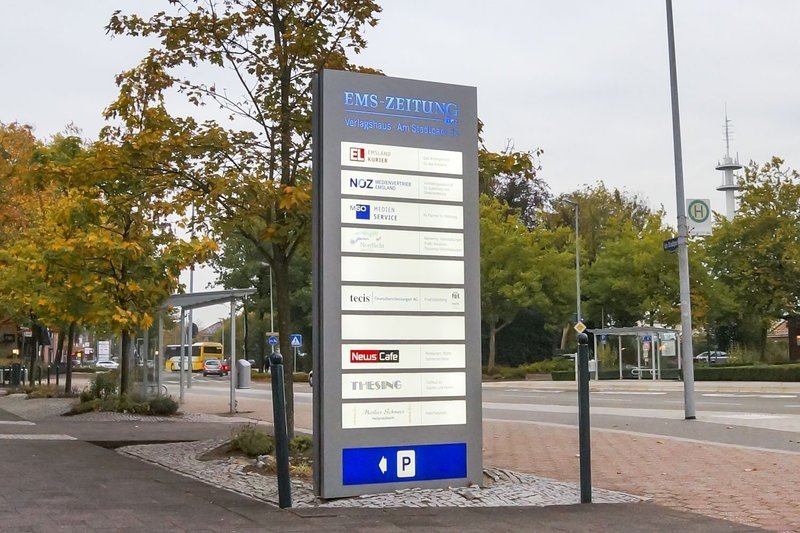

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.

Detailed information
