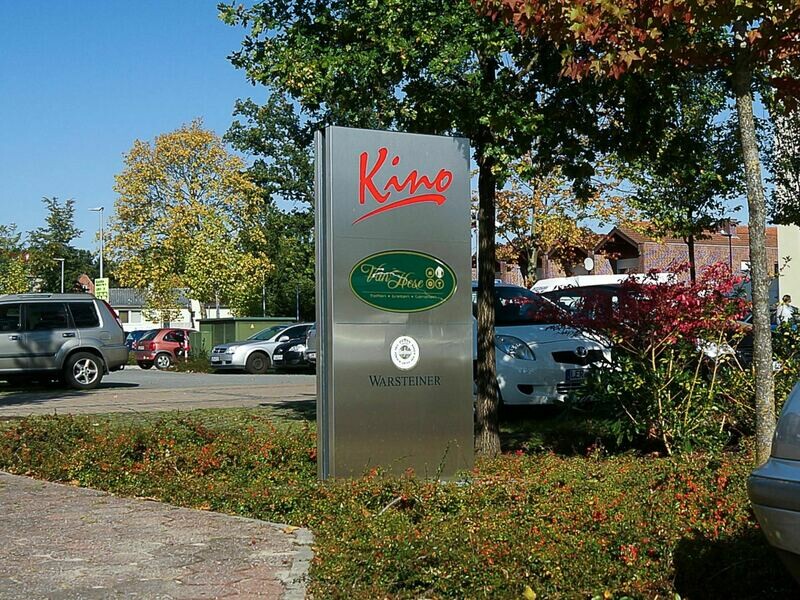

Advertising Pylon, Stainless Steel Look, LED Illuminated, H=2200 mm

Technical description | Features:

Material:

Construction made of galvanised steel and/or aluminium. Fronts made of aluminium composite material in stainless steel look. Side frame finished with a very attractive shadow gap. Colour: Dark grey. Painted to RAL on request at an extra charge. Logo and texts are lasered out of the front with acrylic glass backlit with LED modules.

TIP: This advertising pylon can be equipped with a wide range of accessories, such as a digital or analogue clock and temperature display, letterbox, bell, video intercom system, poster showcase, etc. See accessories.

Processing:

Construction welded, frame and fronts edged in aluminium. Screwed joints not in sight. Motifs lasered out, backed with acrylic glass and backlit with LED modules.

Lettering:

Up to 4 colours in digital print according to your artwork or with foil text.

Illumination:

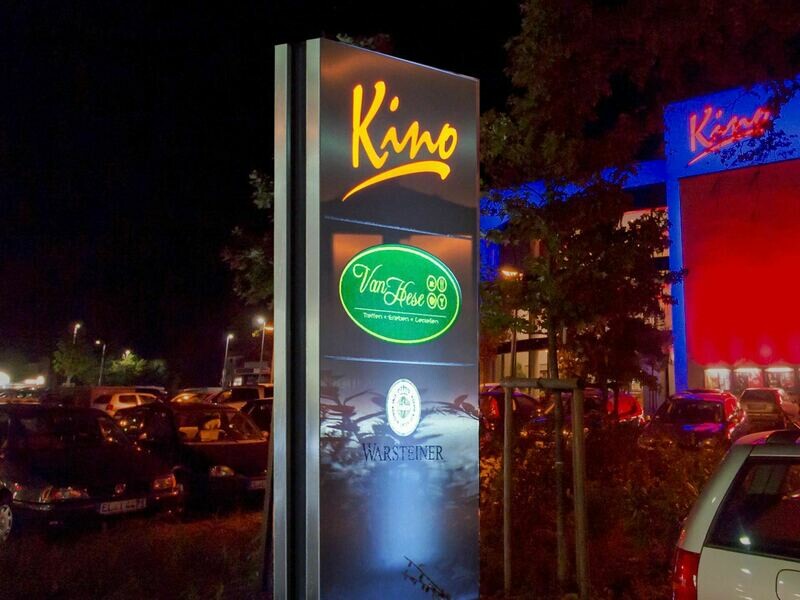

Made using modern and energy-saving LED technology (6500 Kelvin, approx. 35-120 watts) Lettering elements such as logo and texts are backed with acrylic glass and illuminated.

Mounting:

Ground mounting is via two anchor tubes on the pylon, which are cast in a sleeve foundation. On request, also available at extra cost with two flange plates for an existing foundation (recommended mounting set included in delivery).

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet. Please enquire about shipping costs.

Change requests and special solutions:

Contact us anytime with your personal requests or thoughts. A detailed concept and a no-strings-attached offer await you.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

Important Note on Disposal According to the Electrical and Electronic Equipment Act (ElektroG)

The Electrical and Electronic Equipment Act regulates that electrical waste should not be disposed of in household waste but should be collected and recycled separately. Electrical and electronic waste is one of the fastest-growing waste streams in the EU. As a manufacturer and retailer, we offer you the option to return your old devices to us or to collection points located in your area. You can send the devices purchased from us back to us with postage paid. We will ensure their proper disposal.
