Advertising Pillar Digital Signage + UVC Air Purification, Indoor, H=2150 mm

Technical Description | Features:

This advertising pylon is only suitable for indoor use!

Material:

Construction made of galvanised steel and/or aluminium. Frame colour painted to RAL 7016 anthracite grey.

Fronts made of aluminium composite material, colour silver, white or black. Painted to RAL on request and at extra charge. Lettering according to choice.

Finishing:

Construction and frame welded, fronts edged as bonnet and installed in view without screw connection.

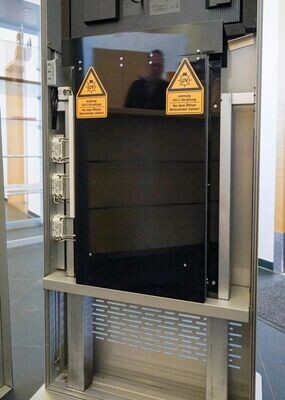

The inspection flap for all maintenance work is located on the rear.

Mounting:

With steel base plate (colour: black) for mobile installation, is included in the price.

Size:

Pedestal with base: approx. 900 x 2150 x 700 mm (W x H x D).

Pedestal without base: approx. 800 x 2140 x 180 mm (W x H x D)

Brand display/monitor from Samsung:

43“/55“/65“ signage display (make your selection on the right) - bright signage display, resolution: 3,840 x 2,160, brightness: 700 cd/mВ, contrast: 4000:1 (static), which displays a flawless, high-contrast image even in bright surroundings. The display can be used for continuous operation. In order to exploit its full potential, we recommend that this display is also used in continuous operation if possible. Locations where your advertising messages can be seen 24 hours a day are perfect for this. Programmable on and off times.

Digital signage player + software + APP (Android) included

Software for programming and displaying information and advertising, and for monitoring monitors at different locations. Extensive functions are possible with the software, such as variable screen formats and divisions as well as individual playback sequences. Training via video tutorials.

The following contents can be displayed:

- Texts and ticker

- Time and date

- Pictures - jpeg, png

- Pdf files

- Films - Mpeg, H264

- RSS feed

- Regional weather

- HTML

Optional Features:

- Logo inscription, 4-colour digital print or foil text according to your artwork = 125,- EUR

- Decoupled logo (milled out), 4-colour digital print or foil text according to your artwork = from 289,- EUR

- Full foiling, 4-colour digital print or foil text according to your artwork = from 489,- EUR

- Audio loudspeaker with regulation = 275,- EUR

- Illumination: Logo or frame light = on request

- WLAN antenna = 125,- EUR

Optional software setup and training:

- Creation of an individual playback sequence (Corporate TV)

Intro with logo, weather, time, date, news, 10x pictures, 2x videos = from 1500,- EUR

- 2 hours training in the software via TeamViewer = 250,- EUR

- Support - technical assistance and support

Monday - Thursday: 7.30 - 17 h, Friday: 7.30 - 14 h = 49,- EUR per month/per stele

Electricity/Internet:

230 Volt/140 Watt - LAN/RJ45

UVC air purifier

Hygiene protection with UVC air purification (70 watts)

- Effective and environmentally friendly disinfection recommended for rooms up to 130 m²

- Emits short-wave UV radiation with a peak value of 253.7 nm (UV-C) for disinfection

- 70 Watt lamp filters out the ozone-forming 185 nm range

- Service life of 9000 h/h

- With safety cut-out when the stele is opened

Warranty:

2 years

Quantity discount possible:

3 pieces = 3 % discount

5 pieces = 5 % discount

10 pieces = 8 % discount

Packaging/delivery:

Pre-assembled or partially assembled packed on pallet and delivered throughout Germany for 225,- € (additional charge for islands) or collection.

Customisation and Special Solutions:

For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

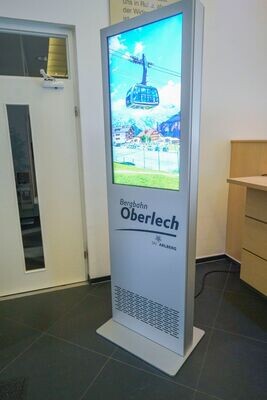

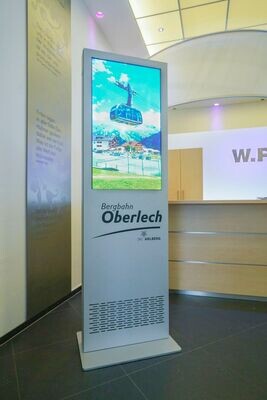

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.

*Data sheets and further information:

Data sheets

Operating system on board: Android 11 OS, 8GB RAM + 64GB ROM

Delivery time: ca. 8-12 weeks

Packaging/Shipping: Special shipping in a crate. Please inquire for shipping costs.

Warranty:

24 months

Customisation and Special Solutions: For individual requests and ideas, feel free to write to us or contact us directly. You will receive a great concept and a non-binding offer.

Photo reference:

Photos only represent an example of the product. The product is created similarly. Deviations in size, design and colour are technically possible.
